Description
- 145mm projection
- Pivotable spout 360°
- Laminar flow
- Height of mixer 250 mm
- Height up to laminar flow regulator 185 mm
- Hole diameter 35 mm
- Provides filtered, hot water up to 93°C
- Provides filtered water
- Max. flow 3.8 l/min at 3 bar flow pressure
- Mechanical valve
- Lead-free
- Lever
- This product can help a building meet the requirements of Green Building Rating Systems, e.g. LEED®, BREEAM®, DGNB

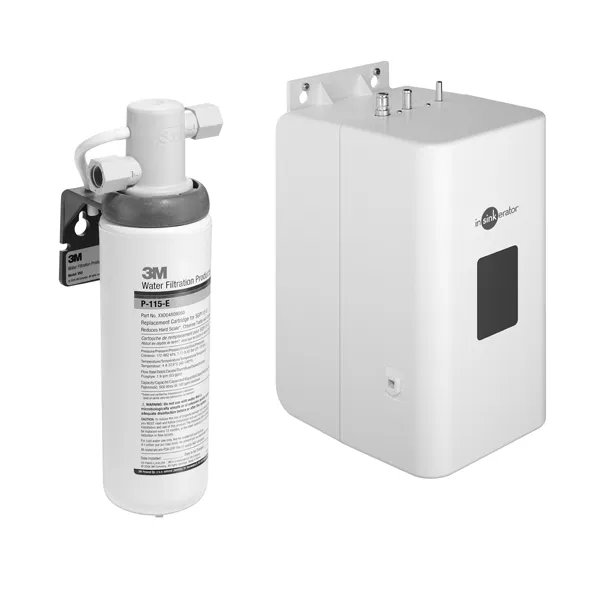

- A minimum flow pressure of 3 bar is necessary for the HOT & COLD WATER DISPENSER to work perfectly in conjunction with a hot water tank and filter.
- The installation must be above a kitchen sink.
- The filter cartridge must be changed every six months. The installation instructions contain further information for guidance.
- Detailed planning information and technical data can be found at www.dornbracht.com/professional
- Not compatible with reverse osmosis filtration
- Instantly boiling hot water by pulling the lever forward – version without child safety lock.
